There are a number of different barrel windlass configurations; both manual and powered, also a wide range of sizes.

Top: A smaller replica 19th Century manual example, and above, a very large manual/hydraulic windlass currently in build.

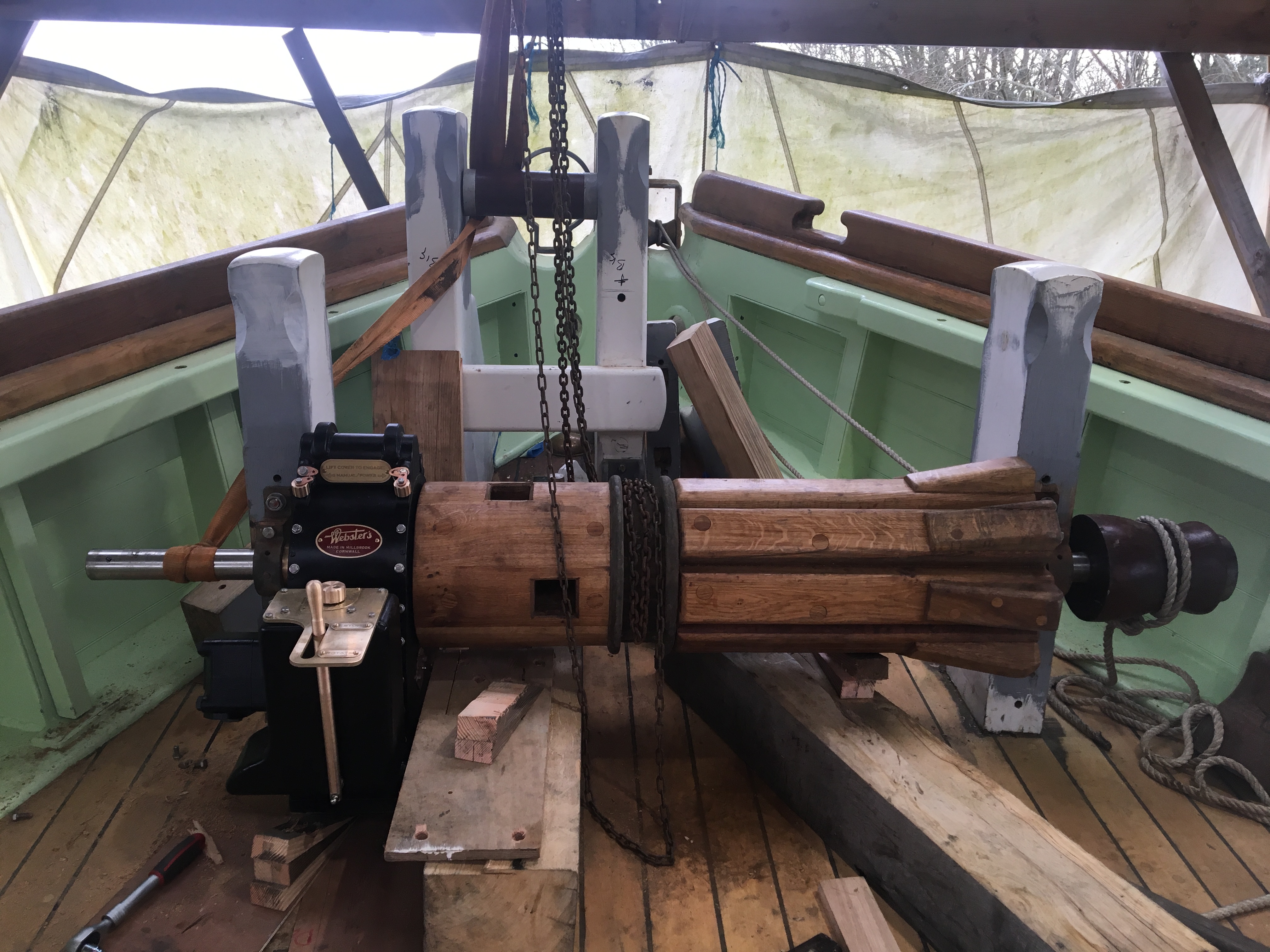

Above: The hydraulic powered barrel windlass fitted to Pellew, Luke Powell's most recent creation. The images were taken during the installation process.
